Specifying an Insulated Equipment Enclosure for Industrial Pump Protection and Noise Reduction

HVAC pumps, compressors, generators and vacuum pumps are hard to ignore when they're running. Without proper insulation, noise from that equipment travels to adjacent workspaces, neighboring properties and anyone working nearby, creating grounds for OSHA hearing hazards and potential code violations.

But these pumps need protecting for another reason: hot and cold temperatures affect optimal performance and the infiltration of dust, debris and moisture can contaminate the water supply. Uninsulated or poorly insulated pump equipment faces both problems at once: sound travels freely and freezing temperatures get in, shortening service life and driving up energy costs.

The good news is that the same insulation materials that reduce noise also protect equipment from extreme temperatures. That means freeze protection and sound dampening come from a single investment.

Specifying the right enclosure means you're addressing both with one system while extending equipment lifespan and reducing operational costs. Here's how to choose the best insulation materials for your next enclosure.

Why Utility Equipment Noise Is a Bigger Problem Than It Sounds

Most mechanical equipment produces noise in the range of 70 to 90 decibels — roughly equivalent to a lawnmower or a passing truck. For workers in proximity to pumps, compressors or generators over the course of a shift, that sustained exposure creates real risk for hearing loss.

The right enclosure panel absorbs up to 85 percent of the sound generated inside it, helping facilities maintain energy efficiency, stay within local noise ordinances and protect workers from sustained high-decibel exposure.

An insulated enclosure panel system is the solution for loud pump equipment. Industrial enclosures can be installed on rooftops or on skids to fit the specific location — in industrial plants, commercial buildings or power stations where sustained noise exposure and freeze risk are both factors.

Local Noise Ordinances and the Decibel Limits Your Equipment May Be Violating

Many municipalities and HOA jurisdictions set maximum allowable noise levels at property boundaries — commonly 50 to 60 dB during daytime hours and lower at night. The EPA provides guidelines consistent with those limits. Industrial or commercial equipment running without sound mitigation can push those numbers well past compliance thresholds, triggering complaints and code enforcement.

When Machinery Noise Becomes an OSHA Concern

OSHA requires hearing protection and hearing conservation programs when workers are exposed to noise at or above 85 dB averaged over an eight-hour workday. Sustained exposure without mitigation leads to noise-induced hearing loss, which is both permanent and preventable. An enclosure panel with a sufficient noise reduction coefficient (NRC) rating reduces that exposure at the source and helps industrial facilities enhance safety compliance before enforcement becomes an issue.

What 'Noise Reduction Coefficient' Means and Why It Matters for Enclosure Selection

Selecting proper insulation starts with understanding the metric that measures acoustic absorption. Not all industrial insulation performs equally on sound.

The noise reduction coefficient (NRC) measures the proportion of sound a material absorbs rather than reflects, on a scale of 0 to 1.

For example, a .85 NRC rating means the material absorbs 85 percent of the sound passing through it. Insulation materials with lower ratings — thin fiberglass pipe insulation, uninsulated steel panels or wire cages — return that noise to the surrounding environment.

NRC is a product of two factors: thickness and density. A thicker panel of dense material absorbs more sound energy across a wider range of frequencies. Thin or low-density insulation may perform adequately on paper for thermal purposes but falls short on acoustic reduction, particularly for the low-frequency rumble that pumps and compressors typically produce. Reducing heat transfer alone is not enough — superior insulation must address both the thermal and acoustic demands of industrial equipment.

How Safe-T-Cover Enclosure Panels Reduce Equipment Noise Up to 85%

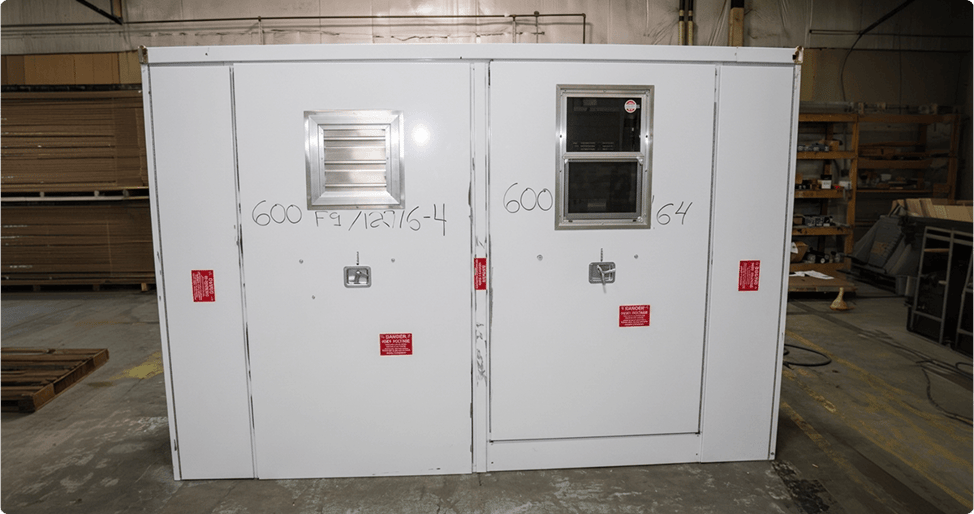

We use 1.5-inch thick CFAB cellulose panels in our enclosure panel insulation system. These panels carry a .85 NRC rating, meaning they absorb 85 percent of the noise generated by the equipment inside. The insulation is mounted directly to each wall and roof panel; it doesn't rely on a separate lining that can shift, separate or degrade over time. The 1.5-inch specification we use represents a deliberate balance between acoustic performance, thermal efficiency and structural footprint within the enclosure panel.

About the CFAB Cellulose Insulation We Use

CFAB cellulose panels are made with 80 to 85 percent recycled content. That post-consumer material base makes them an environmentally responsible alternative to synthetic acoustic or thermal panels — the first cellulose-based insulation of its kind in the industry.

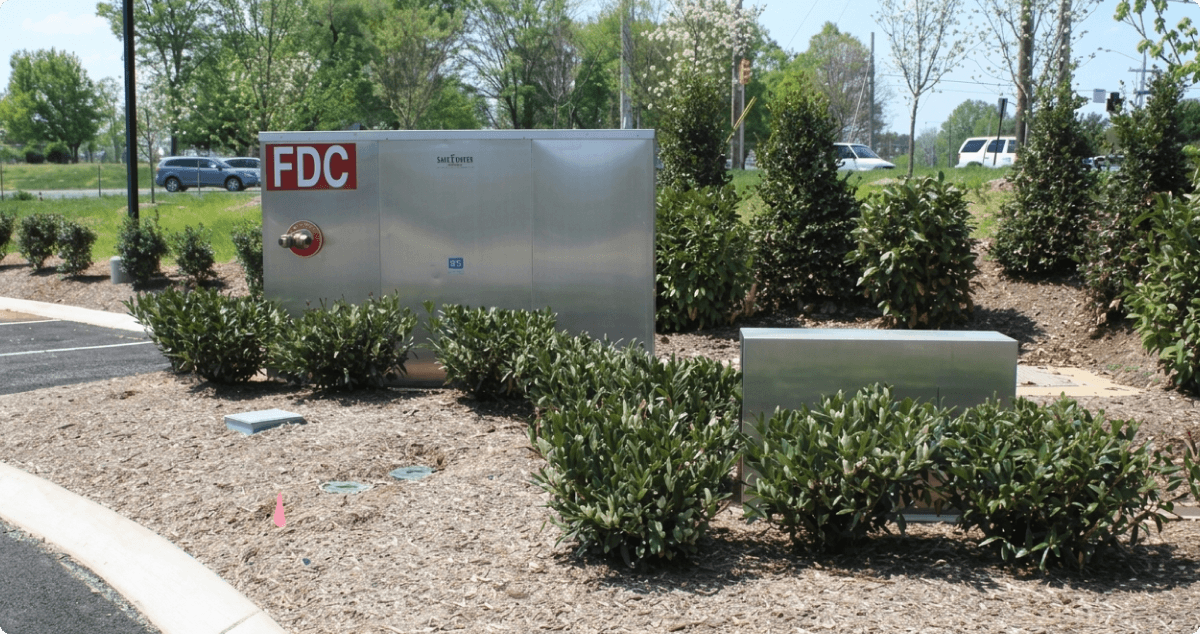

In addition to absorbing sound, these panels carry a Class A fire rating, providing fire protection. CFAB products are also completely recyclable in most instances and resist mold growth. Mold resistance is a meaningful advantage in enclosures housing pump equipment, piping systems and backflow preventers, as these are applications where humidity and moisture are constant concerns.

Enclosure Panel Insulation Types: A Side-by-Side Comparison

Not every enclosure panel option delivers the same acoustic performance. The table below compares two common insulation materials used in pump and equipment enclosures across industrial applications.

Note: Ratings for spray foam and fiberglass vary significantly by product formulation and thickness. Examples provided above are for a 23 in x 13 in x 27 in fiberglass valve enclosure. CFAB cellulose panel ratings reflect Safe-T-Cover's standard 1.5-inch specification.

Beyond Sound: What an Insulated Enclosure Panel Protects

The same enclosure panel system that reduces noise also provides freeze protection at low temperatures, as well as structural integrity and climate control across seasons. For industrial insulation applications spanning power plants, industrial plants and buildings, addressing both acoustic and thermal performance in a single system reduces project complexity and long-term maintenance costs.

Freeze Protection and Climate Control Options

Safe-T-Cover's standard wall panels carry an R-9 insulation rating. Our roof panels use 3-inch R-18 insulation. Slab-mounted heaters distribute radiant heat at the floor level, reducing heat loss near the equipment. This is especially important during power failure, when insulation in the enclosure panel becomes the last line of defense against freezing temperatures.

For pump equipment that generates heat, enclosures can be fitted with exhaust fans and louvers to maintain optimal performance during summer months. Monitoring devices with sound, visual and remote-alert capabilities are also available to alert you to problems inside the enclosure.

Marine-Grade Aluminum vs. Other Insulation Solutions

The enclosure frame matters as much as the insulation inside it. Various materials are used in industrial enclosure construction, each with a different lifespan, maintenance profile and resistance to chemical exposure, moisture and corrosion.

Here are the pitfalls of the alternatives:

• Fiberglass enclosures deteriorate in UV exposure, become brittle in heat and are easily damaged by tools or debris.
• Plastic enclosures warp in high heat, crack with UV exposure and provide inadequate protection in any climate with temperature variation.
• Wire cages offer no weather protection, noise reduction, fire protection or security.

A Safe-T-Cover marine-grade aluminum enclosure is built to last beyond 30 years, with a fade-resistant finish that holds up in extreme heat and cold. Modular panels allow replacement of individual sections without removing the entire enclosure, which keeps maintenance to a minimum across a long service life.

The lightweight material — marine-grade 5052-H32 aluminum — delivers exceptional long-term durability without the issues that affect fiberglass and plastic over time. For water absorption alone, the distinction is stark: Fiberglass absorbs moisture over time, weakening the fiber-resin bond and degrading its structural integrity, whereas aluminum never has this problem.

The many benefits of Safe-T-Cover aluminum enclosures include:

Security, Monitoring and Access

Lockable access panels and doors come standard to protect from theft and vandalism. Removable or hinged roof panels make full equipment extraction possible without construction. Piping penetrations are field-modified by the installing contractor, giving on-site flexibility when measurements don't match the drawing.

Custom and Modular Enclosure Panel Design for Easy Installation

Standard sizing fits most backflow preventers and common pump OEM equipment. When it doesn't, our design team builds custom enclosures to exact specifications with the same pump insulation and lead times. Tailored solutions are available for industrial facilities across various industries, from water utilities and buildings to power stations and industrial plants.

In one project, a client needed an air conditioning pump enclosure that delivered both acoustic reduction and protection across all four seasons. Safe-T-Cover provided a modular aluminum enclosure with CFAB insulation panels and shipped the panels flat for on-site assembly — a cost-effective method that kept logistics expenses low without compromising pump performance.

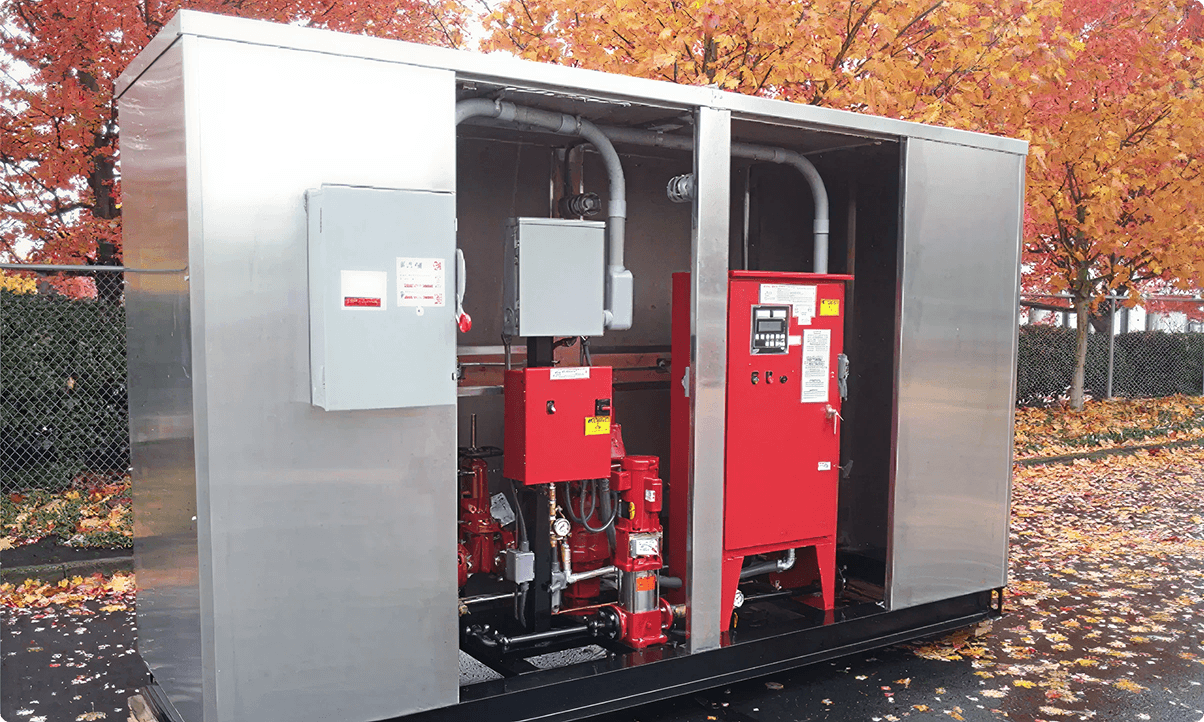

Skid-Mounted, Pad-Mounted and Field-Configurable Options

Equipment enclosures can be designed for skid or pad mounting depending on the application. For complex installations — glycol systems, quench tanks, fire suppression systems, HVAC units — our engineers work directly from the project drawings to develop a solution. It's common for us to deliver preliminary drawings and an engineering estimate within three hours of initial contact, with final delivery in under four weeks.

Specify the Best Insulation Material for Your Pump

Noise is a design problem and the insulated enclosure panel is the fix. Whether the application is a rooftop compressor, an outdoor generator or a utility pump in a high-traffic area, Safe-T-Cover's design team can develop an insulated aluminum pump enclosure to meet your acoustic, thermal and compliance requirements. Use our pump cover checklist to identify which enclosure your project requires.

FAQ

What is a noise reduction coefficient (NRC), and what rating do I need?

NRC measures the proportion of sound a material absorbs, from 0 (total reflection) to 1 (total absorption). For mechanical equipment like pumps and generators, a .85 NRC rating — the rating of Safe-T-Cover's CFAB cellulose enclosure panels — provides strong acoustic performance across the frequency ranges those machines produce.

How much noise does an enclosure panel actually block?

Safe-T-Cover's 1.5-inch CFAB cellulose enclosure panels absorb approximately 85 percent of the noise passing through them, consistent with their .85 NRC rating. The total reduction experienced outside the enclosure depends on the equipment type, the enclosure's fit and seal, and the acoustics of the surrounding environment.

Do I need an enclosure if my equipment is indoors or on a rooftop?

Rooftop equipment transmits vibration directly into the building structure, and interior installations near workspaces can exceed safe exposure thresholds. In either case, an insulated enclosure panel system reduces sound transmission to adjacent spaces and can address compliance concerns before they become enforcement issues.

Does the enclosure panel insulation also provide freeze protection?

Yes. The same CFAB cellulose panels that absorb noise also contribute to thermal retention. Safe-T-Cover's standard wall panels carry an R-9 rating; our roof panels carry R-18. Combined with a slab-mounted heater, the enclosure maintains internal temperatures above freezing even in sustained cold-weather events.

Will adding an enclosure affect airflow or cause my equipment to overheat?

Proper airflow management is built into the enclosure design. Safe-T-Cover enclosures can be fitted with exhaust fans on one end and louvers on the other, pulling air through the enclosure to prevent heat buildup. Equipment that generates significant heat — booster pumps, compressors — should be specified with ventilation options from the start.
