Enclosure Monitoring Systems

Find the best power failure monitoring system and power supply temperature monitor for your industrial enclosures. Get alerted if there's a problem with your equipment due to power failure, temperature and more.

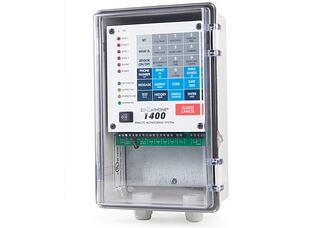

Sensaphone 1400 Monitoring System

List Price: $1,465

sensaphone 1400 monitoring system
Summary

The Sensaphone 1400 Monitoring System monitors up to four inputs. It's able to function even in harsh conditions. The system includes dry contact, 2.8K and 10K thermistor inputs. It also features 4-20mA support, allowing third-party sensor integration, including wireless sensors.

Key Details
Nonvolatile memory retains settings, programming and logs. This memory remains even in the event of a power failure. The status of each monitored condition is easy to obtain on-site or by smartphone.

  • Up to four external sensor inputs to monitor temperature, power failure, humidity, water and more
  • Included relay output can switch local devices on/off based on alarm activity
  • 24/7 access from your smartphone
  • Record custom voice alerts and receive alarm messages in your own voice
  • Rugged, weatherproof NEMA-4X enclosure protects from harsh environments
  • Receive voice alerts and alarm notifications over standard telephone lines
  • Notifies up to eight people by phone in the event of an alarm
  • Battery backup provided for sustained operation during a power failure
Tech Specs
Communication Method Phone Line
Number of Inputs 4
Input Types
Contact, 2.8K, 10K , 4-20mA
Temperature Sensing Range
-109° to 168°F | -85° to 76°C
Output Relay One universal input relay
Manual or automatic alarm switching
Remote Access Call in to check status and make programming changes
Microphone for listen in status
Local Access Keypad and speaker for local programming.
Easy voice prompted programming.
Password Protected
Recent alarm history playback
LEDs
Alarm Notification Four custom voice phone calls
Power Supply Plug in power supply also monitors for power failures
Internal battery backup
Battery Backup Time 24 hours
Physical 12.1 x 7.3 x 4.5” | 53 x 198 x 223mm • 5lbs | 2.2kg
Warranty 2 years
Enclosure Solid Door Enclosure:
ABS/PC Blended Plastic, UL94-5VB Flammability rating, NEMA Type 1, 2, 3, 3R, 4, 4X, 12 & 13, IEC529, IP66
Clear Door Enclosure:
ABS/PC blended plastic, UL94–5VB flammability rating; UV stabilized. NEMA Type 1, 2, 3, 3R, 4, 4X, 12 &13, IEC529–IP65
Standards FCC Part 15 Class A, USA Emission Standards
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
ICES-003 Issue 4 Class A, Canadian Emission Standards
Complies with CS-03 Issue 8, Canadian Telecommunications Standards
NRTL Listed for compliance to UL60950-1, USA Safety Standards
NRTL Listed for compliance to CSA C22.2 No. 60950-1, Canadian Safety Standards




Downloads

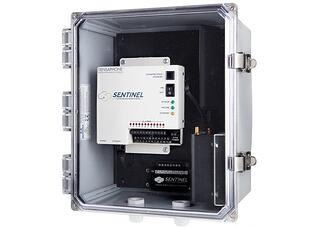

Sensaphone Sentinal Monitoring System with Cellular Modem

List Price: $3,018*

*Annual fee not included

sensaphone sentinel remote monitoring system
Summary

The Sentinel Monitoring System with cellular modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or internet connection. The Sentinel monitors up to 12 different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection.

Key Details
The Sentinel delivers daily event reports and provides audit logs. Users can access information and make system changes from any web-enabled device. The system stores all readings in the cloud, protecting against data loss, provides unlimited information storage and allows multiple devices to be managed from one account. No software is required, so installation, integration and management.

  • A supervised internet connection assures the Sentinel is online and monitoring at all times
  • Store your sensor readings in the cloud to automatically protect against data loss and provide limitless information storage.
  • Receive alarm notifications via cellular connection
  • Notifies an unlimited number of people by e-mail, text message or voice phone calls in the event of an alarm
  • 24/7 access from your computer or smartphone
  • Battery backup provided for sustained operation during a power failure
Tech Specs

Communication Method

Choose between 3G or 4G/LTE Cellular Modem for use on Verizon, AT&T or Rogers

Number of Inputs

12

Input Types

Contact, 2.8K, 10K, 4-20mA

Temperature Sensing Range

-109° to 168°F | -85° to 76°C

Output Relay

One low voltage NO/NC relay output

Manual or automatic alarm switching

Remote Access

Website to access status and programming

Local Access

LEDs for Alarm Status, Power Status, and Cellular link

Alarm Notifications

An unlimited number of email, text or phone calls

Power Supply

Plug in power supply also monitors for power failures

Data Logging

 Unlimited samples securely stored on the Sentinel servers
Programmable sampling Interval - 1 min to 24 hrs

Battery Backup

8-Hour rechargeable battery backup for both the Sentinel & Cellular modem included

Physical

12.5 x 12.2 x 7.0” | 318 x 310 x 178mm
10.5lbs. | 4.7kg



Downloads

Sensaphone Sentinel Monitoring System User's Manual

Sensaphone Sentinel Monitoring System with Cellular Modem Manual Addendum

Sensaphone Sentinel Monitoring System with Cellular Modem Subscription Agreement

Sensaphone Sentinel Monitoring System with Cellular Modem Popular Sensors and Accessories

Sensaphone Sentinel Monitoring System with Cellular Modem Subscription Pricing

Sensaphone Sentinel Monitoring System with Cellular Modem Technical Specs

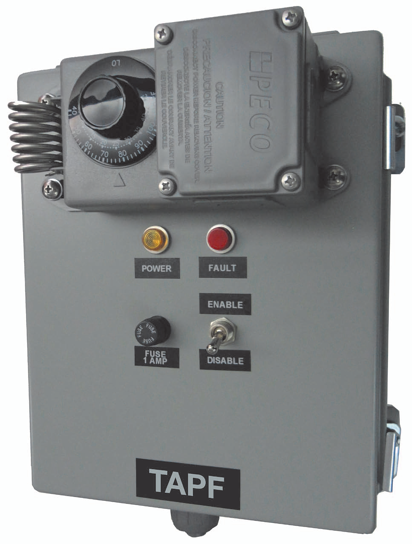

Temperature and Power Failure Alarm

List Price: $2,864

TAPF41
Key details
  • Audible alarm
  • Strobe light alarm
  • Power failure sensors
  • Temperature sensors
  • Battery backup provided so that the device operates during a power failure
  • Rugged, weatherproof NEMA-12 protective enclosure



The Safe-T-Cover TAPF series alarm systems activate an audible alarm as well as a strobe light in the event of a power failure or whenever the temperature inside the enclosure drops below the set point.

Summary

This alarm consists of a painted NEMA-12 rated cabinet, 12VDC battery, AC battery charger, relays, 90 decibel horn, strobe light, thermostat and the temperature sensor. This alarm is designed to activate both the vision strobe light and the audible alarm if either the enclosure loses power or if the internal temperature falls below the owner-managed thermostat set point. Extra contacts are provided to interface with other devices.

This alarm is direct-wired into 120 volt, single phase electrical service. Both alarms run off a 12-volt DC battery. The 120V AC electrical power keeps the 12V DC battery system charged. The electronics are encased in a painted, 14-gauge steel NEMA-12 enclosure for superior weather protection.

The TAPF alarm system must be supplied by the same 120V electrical service that supplies the heaters.

Tech Specs
Painted cabinet 14 guage steel with a NEMA-12 rating
Communication Method

Audible and strobe light alarm. This alarm also has extra contacts to interface with your control room.

Piezo Part #PW12D
Audible alarm

30 mA Warble

95 dB minimum
Strobe light

Ingram Part SK12VDC

30 flashes/minute

90mA Max current draw
Remote Access No remote access
Contacts Dry contacts are rated for 10 ADC @ 24 VDC or 10 AAC @120 VAC.
Alarm Locations Audible and strobe light alarms are attached to the outside of the enclosure.
Power Supply Direct wired to 120 Volt electrical. 240 Volt power can't be used
Physical 9"W x 9"L x 13" H overall
Battery Backup 24-Hour rechargeable 12VDC battery backup is included



Downloads

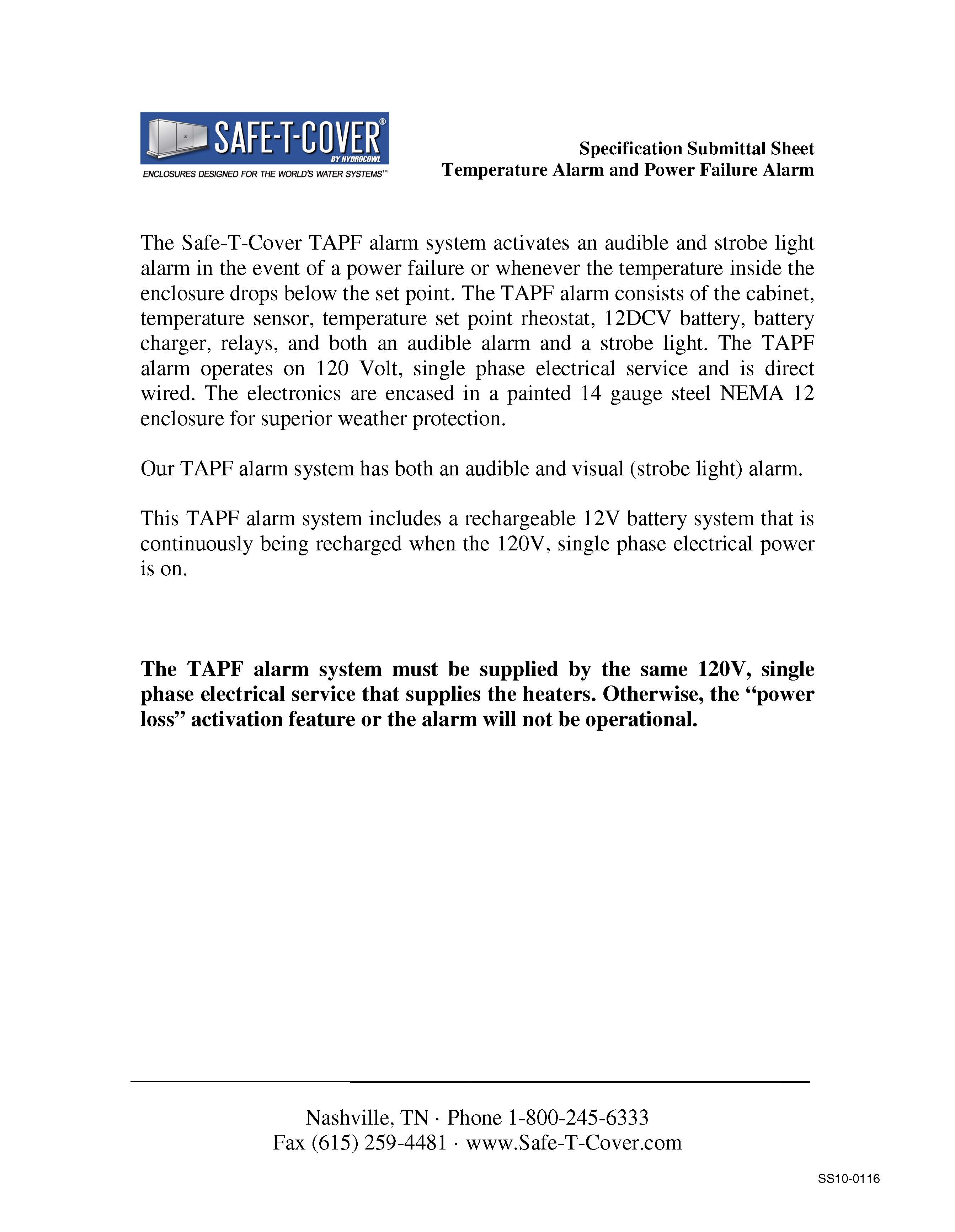

Temperature and Power Failure Alarm Specifications

Temperature and Power Failure Alarm Installation Instructions

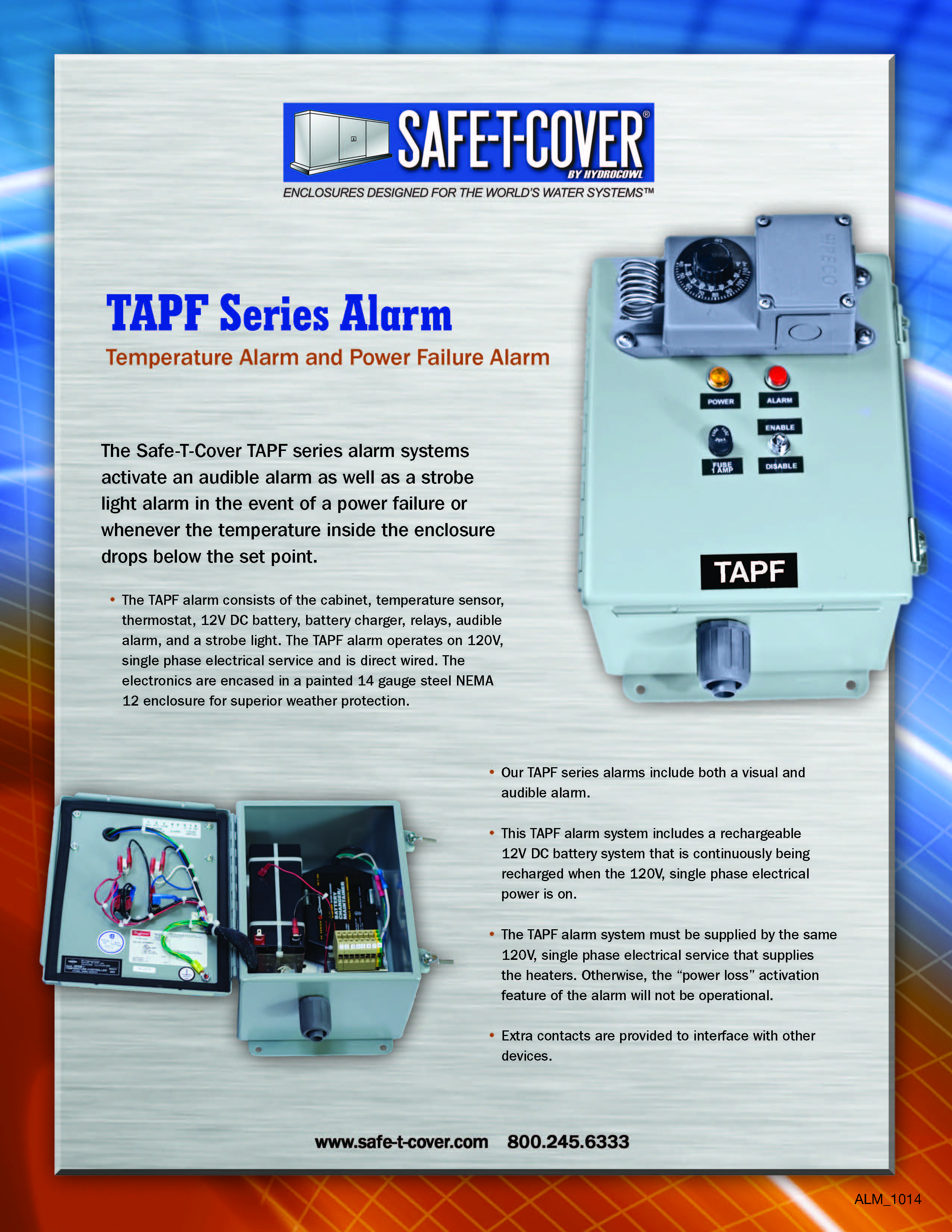

Temperature and Power Failure Alarm Submittal

Installation Guide

FAQ

What's the difference between the Sensaphone 1400 and the Sentinel Monitoring System?

Both are enclosure monitoring systems designed for equipment protection, but they differ in scale and communication. The Sensaphone 1400 monitors up to four inputs over a standard phone line and notifies up to eight people by phone. The Sentinel monitors up to 12 inputs and uses cellular link alarm notifications, sending an unlimited number of alerts via email, text, or voice call, which is a better fit for sites without landline or internet access.

Do these systems keep working during a power outage?

Yes. Battery backup is a core part of each system's freeze protection and power protection design. The Sensaphone 1400 provides 24 hours of battery backup. The Sentinel provides eight hours for both the unit and its cellular modem. The Safe-T-Cover TAPF includes a 24-hour rechargeable 12VDC battery for continued alarm and control during freezing conditions.

What types of sensors or inputs can these systems use?

The Sensaphone 1400 and Sentinel both support dry contact, 2.8K, 10K thermistor, and 4-20mA, making them compatible with a range of third-party and wireless devices.

Are these devices suitable for outdoor or harsh environments?

The Sensaphone 1400 uses a rugged NEMA-4X rated enclosure (also rated NEMA 1/2/3/3R/4/4X/12/13) built for corrosion resistance and durability in harsh conditions. The Safe-T-Cover TAPF uses a painted 14-gauge steel NEMA-12 enclosure for weather protection against freezing temperatures and general wear.

How is the Safe-T-Cover TAPF system installed and powered?

Installation requires direct wiring into a 120-volt, single-phase electrical service and must be supplied by the same ground and electrical service that powers associated heaters. The incoming AC power keeps the 12VDC battery charged, allowing for uninterrupted performance.

How do I get notified if there's an alarm event?

The Sensaphone 1400 delivers custom recorded voice alerts by phone. The Sentinel sends alarm notifications via phone, text, or e-mail over its cellular connection to an unlimited number of users. The Safe-T-Cover TAPF uses a 90+ dB audible horn and strobe light for on-site alerting instead of remote monitoring.

What enclosures or equipment can these systems be used on?

These monitoring and alarm systems are designed to protect equipment enclosures exposed to freezing temperatures, power loss, or environmental threats. This includes heated enclosures for backflow prevention devices like RPZ and DCV as well as pumps, water meters and other equipment housings that need continuous temperature and power monitoring.

Why is an enclosure monitoring system needed to protect equipment from freezing conditions?

An enclosure monitoring system gives you the ability to track temperature, humidity, power status, and alarm status in real-time. Sensors placed inside the backflow enclosure detect freezing temperatures before they cause equipment damage by triggering alarm and control functions to alert users immediately. Proactive monitoring is increasingly treated as an industry standard for equipment that can't tolerate downtime from freezing conditions or power threats.
